John Deere CP7760, CP690, and CP770 module pickers operate at harvesting speeds of up to 24 bales per hour. Cotton bale wrap film engineered for these machines features consistent 75-micron thickness and smooth edge finishing to support uninterrupted feeding through the wrapping mechanism. Uniform film tension reduces instances of misalignment during the wrapping cycle, which helps maintain harvesting throughput for farms processing 1,000 or more bales per operating day. The film color provides visual contrast against cotton fiber, enabling operators to identify incomplete wraps during machine operation.
Cotton bales stored for extended periods require protection from ambient moisture and environmental contaminants. The wrap film incorporates moisture-regulating properties that help maintain bale moisture levels within specified ranges during storage. An anti-microbial coating is applied to the film interior to address mold spore presence, supporting cotton quality preservation through storage periods of six months or longer in humid climate regions.
Farms supplying eco-certified cotton supply chains need packaging materials that align with sustainability frameworks. This cotton bale wrap incorporates 30 percent post-industrial recycled polyethylene content without altering tensile performance specifications. The material composition supports compliance with sustainable cotton procurement programs for textile and apparel supply chains.
Parameter | Value | CP Series Compatibility Note |
|---|---|---|
Width | 106" (2.7m) | Matches CP series bale circumference requirements |
Thickness | 75 micron | Calibrated for CP series feeder mechanism |
Roll Diameter | 10" (25cm) | Fits standard CP series film holder dimensions |
Roll Weight | 220 lbs (100 kgs) | Yields approximately 24 bale wraps per roll |
Operating Temperature Range | -59°F to 104°F | Suitable for major cotton producing regions |
Recycled Polyethylene Content | 30% | Supports eco-certification documentation |
Film Color | Red (standard); yellow, green, custom available | High visibility for wrap inspection |
Main Specifications | TAMA | ECOPACK | |
|---|---|---|---|
Strength | Portrait, MPa | 25.1 | 26.2 |
Horizontal, MPa | 27.1 | 27.7 | |
Elongation at break | Portrait, % | 506 | 531 |
Horizontal, % | 649 | 611 | |
Right angle tear strength | Portrait, kN/m | 103 | 110 |
Horizontal, kN/m | 124 | 118 | |
impact damage quality, g | 416 | 1232 | |
Coefficient of friction (outside/inside) | Static friction | 0.356 | 0.479 |
Kinetic friction | 0.278 | 0.319 | |
| |    |
The film is manufactured from a blend of 30 percent post-industrial recycled polyethylene and 70 percent virgin polyethylene. Lab testing records the following mechanical properties: 26.2 MPa tensile strength in longitudinal direction, 27.7 MPa tensile strength in transverse direction, 531 percent elongation at break longitudinally, and 611 percent elongation at break transversely. Impact resistance testing measures 1232 grams under standard dart drop test conditions. The red pigment uses non-bleeding formulation to prevent fiber discoloration during contact with cotton.
The film incorporates a modified splice design with an extended non-adhesive section, measuring 3 inches wider than standard agricultural film splices. This dimension adjustment aligns with the automated peel-off mechanism on John Deere CP series harvesters, supporting consistent film separation during the wrapping cycle. The splice configuration also facilitates cleaner film removal at cotton processing facilities, reducing mill downtime associated with adhesive residue transfer.
The wrap film has undergone operational testing on CP7760, CP690, and CP770 harvester models. Test documentation is provided with each bulk shipment, including feeding performance data and wrap completion rates recorded during field trials. The film is also compatible with cotton picker models from China Railway Construction Heavy Industry, Boshiran, Ward, and Swan.

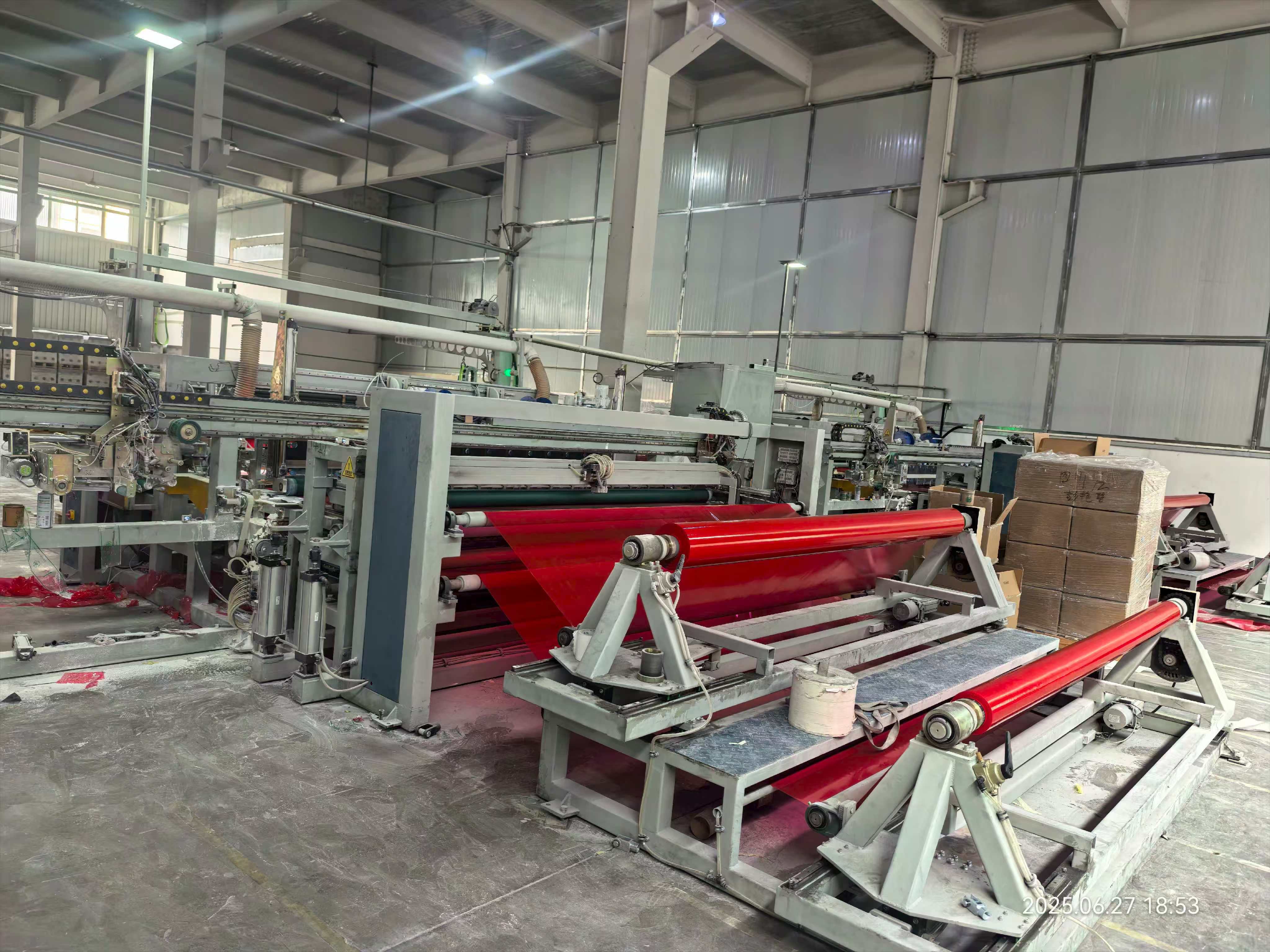

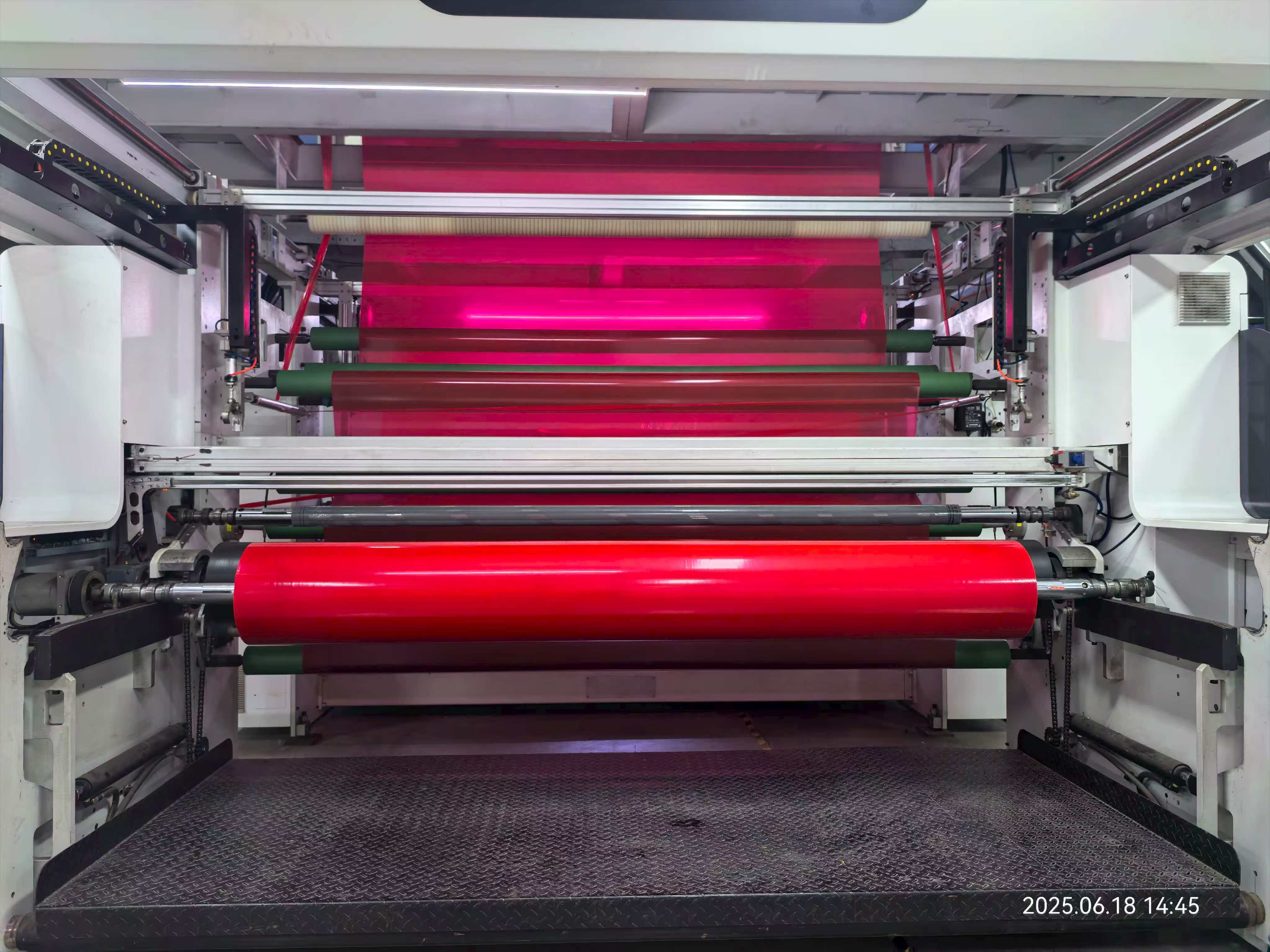

Film production follows established quality control protocols, and material documentation including SCI compliance records and OEKO-TEX standard certification is available upon request. A used film recycling program is offered for bulk orders, with return shipping coverage for orders exceeding 50 rolls. The product carries a 2-year shelf life warranty from manufacturing date when stored under recommended warehouse conditions.
Each 2.7m wide roll of cotton wrap film produces approximately 24 complete bale wraps, which aligns with the output capacity of one standard roll on John Deere CP series harvesters. Actual coverage may vary based on wrapping tension settings and bale density.
Yes, the 2.7m wide film is compatible with John Deere CP7760, CP690, and CP770 module picker models. It also fits compatible harvester models from other manufacturers including China Railway Construction Heavy Industry, Boshiran, Ward, and Swan.
When stored in a dry, temperature-controlled warehouse away from direct sunlight, cotton bale wrap film maintains its specified performance properties for 24 months from the date of manufacture. Each roll includes production date labeling for inventory tracking.
