As a premier manufacturer and supplier of commercial-grade protective solutions, we engineer our Laminated PE Heat Shrink Wrap with Non-Woven Reinforcement to safeguard your most high-value assets. This heavy-duty wrap combines high-density polyethylene with a soft polyester liner, delivering unmatched structural integrity for bulk industrial transit and long-term storage.
Engineered specifically for heavy machinery, modular homes, and marine vessel protection
Advanced laminated dual-layer structure completely prevents surface abrasion
Available in commercial-scale sizing for seamless, monolithic application
When transporting heavy machinery or storing massive modular housing units outdoors, standard packaging often fails under the relentless stress of harsh winds and mechanical friction. Our reinforced heat shrink wrap provides a robust shield that feels incredibly substantial and heavy to the touch. The exterior face presents a smooth, slick high-density polyethylene surface that effortlessly deflects rain, snow, and corrosive salt spray. Conversely, the interior face reveals a visibly textured, soft non-woven polyester liner designed to gently cradle sensitive painted surfaces and delicate components, ensuring zero abrasive damage during intense transit vibrations.
As the material is heated during installation, it emits a faint, clean scent typical of premium virgin polymers, snapping tightly around irregular contours with a satisfying, drum-tight resonance. This dual-layer construction fundamentally transforms how industrial assets are protected, turning vulnerable equipment into weather-impervious fortresses. By absorbing blunt impacts and resisting the tearing forces of gale-force winds, this wrap eliminates the costly repairs and project delays associated with transit damage. Your equipment arrives at its final destination in the exact pristine condition it left the facility, ready for immediate deployment.
Parameter | Range/Details |
|---|---|
Width | 12–80 feet (3.65–24.4 meters) |
Thickness | 6–14 mil (150–350 microns) |
Reinforcement Layer | Non-woven polyester (100 gsm) |
Tensile Strength | 3000 N/m (crosswise); 2500 N/m (lengthwise) |
Color | White, Clear, Blue; custom colors on request |
Standard Sizes | 16'x10 Mil, 26'x9 Mil, 36'x7 Mil, 40'x10 Mil, 80'x7 Mil |
Protecting oversized, high-value assets requires more than just a basic plastic covering. Our reinforced heat shrink wrap is meticulously engineered to address the specific pain points of industrial storage and transportation, offering a comprehensive defense system against mechanical and environmental threats.

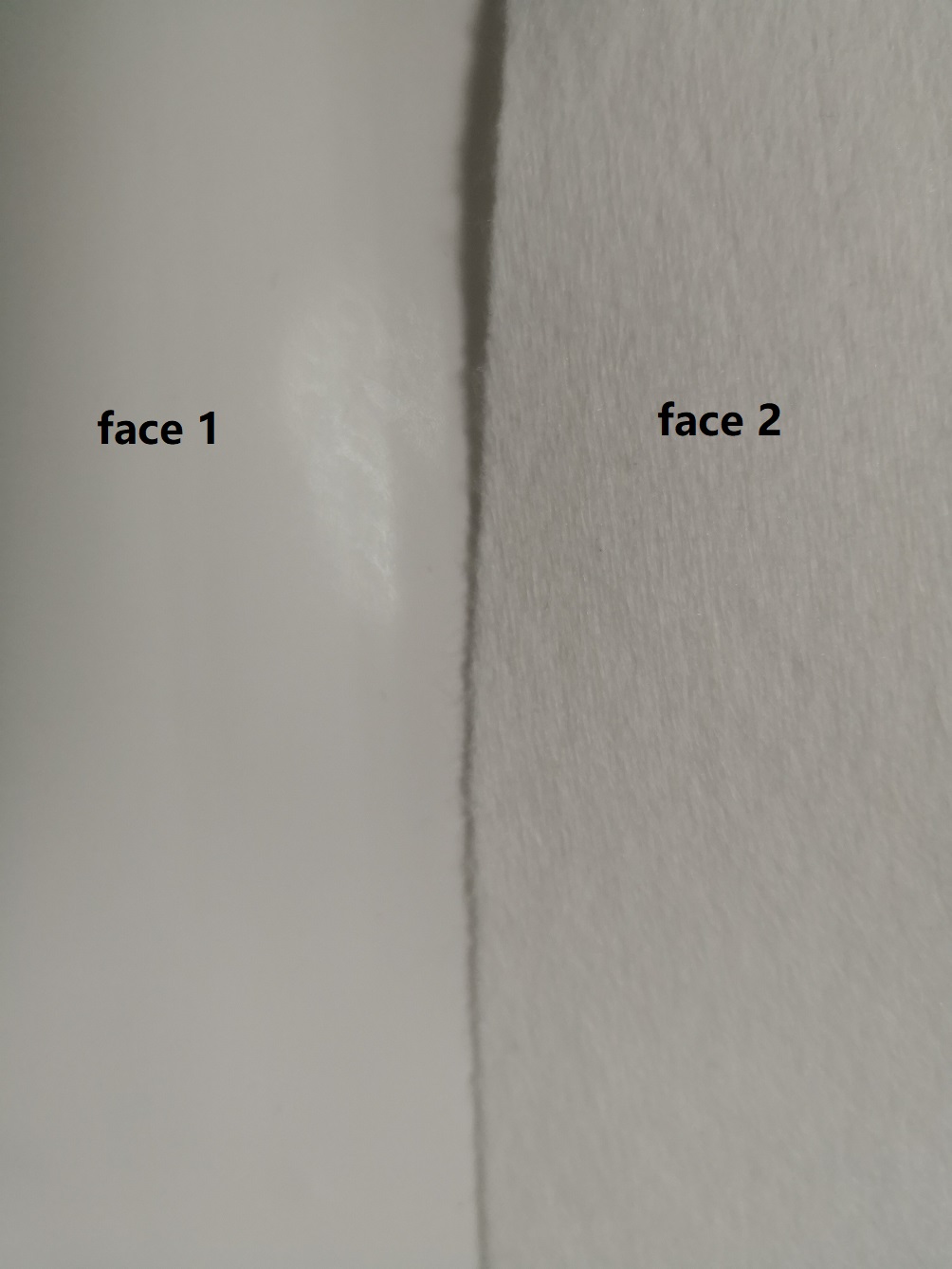

Dual-Sided Performance: The smooth exterior repels moisture and debris, while the plush non-woven interior acts as a shock-absorbing cushion against sharp edges and painted finishes.
Drum-Tight Conformity: Upon heat application, the material shrinks uniformly, creating a rigid, custom-fit shell that prevents wind flapping and pooling water.
Exceptional Load Bearing: Capable of withstanding significant direct pressure, this wrap maintains its structural integrity even when subjected to heavy snow loads or accidental impacts during loading.
Long-Term Reliability: Infused with advanced stabilizers, the wrap maintains its flexibility and strength over extended periods, preventing premature brittleness and degradation.
The foundation of this exceptional protective covering lies in its advanced lamination process. We expertly fuse high-density polyethylene (HDPE) with a dense 100 gsm non-woven polyester mesh, creating a robust composite material that dramatically outperforms conventional single-layer alternatives. This dual-face construction is visually distinct, featuring a smooth, slick outer shell for weather deflection and a textured, fabric-like inner layer for surface protection.
Enhanced Base Strength: This specialized lamination increases the core tensile strength by 80% compared to standard shrink films, providing a virtually impenetrable barrier against environmental hazards.
Anti-Scratch Interior: The soft, textured inner layer actively prevents friction burns and abrasion on polished metal, glass, or painted surfaces, which is a critical necessity for heavy machinery packaging.
Delamination Resistance: Our thermal bonding technique ensures the layers remain permanently fused, even under extreme tension or fluctuating temperatures, preventing blistering or peeling during long-term storage.
Structural Integrity: By combining the rigidity of HDPE with the flexibility of polyester, the resulting matrix resists puncture propagation, meaning a small nick will not easily tear into a large hole.
Industrial transit is inherently rough and unpredictable. Bulldozers, generators, and modular homes are frequently subjected to sudden jolts, rubbing against transport beds, and flying road debris. This reinforced wrap is specifically engineered to absorb and deflect these intense physical abuses without compromising the internal asset. Boasting a crosswise tensile strength of 3000 N/m and a lengthwise strength of 2500 N/m, the material aggressively resists tearing and puncture.
Impact Absorption: The non-woven layer acts as a micro-cushion, absorbing blunt force impacts that would otherwise shatter or dent unprotected casings and fragile components.
High Pressure Tolerance: Tested rigorously to withstand up to 50 lbs of direct pressure, ensuring the wrap does not fail under the weight of accumulated snow, ice, or heavy debris.
Vibration Dampening: During long-haul highway transport, the snug fit and reinforced backing work together to dampen high-frequency vibrations that can loosen mechanical parts.
Structural Support: For modular homes, the rigid, shrunk shell actually provides temporary structural reinforcement, minimizing wall flexing and structural warping during inter-site transit.
Assets left in open-air storage facilities or marine environments face constant bombardment from the elements. Our wrap transforms these vulnerable conditions into secure, climate-controlled micro-environments that preserve the integrity of your equipment. The advanced chemical formulation includes premium UV stabilizers and anti-aging agents, guaranteeing up to 18 months of continuous outdoor exposure without the plastic turning brittle, chalky, or weak.
Moisture & Salt Blockade: The non-porous PE exterior completely seals out driving rain, snowmelt, and corrosive marine salt spray, keeping sensitive electrical components and bare engine parts completely dry.
Extreme Cold Durability: Specialized low-temperature variants are available, ensuring the plastic remains pliable and crack-resistant even in sub-zero freezing conditions common in northern climates.
UV Degradation Prevention: The chemical additives actively reflect and absorb damaging ultraviolet rays, protecting both the wrap's structural integrity and the asset's paint from severe sun fading.
Wind Deflection: Once properly heated and shrunk, the aerodynamic surface causes high-velocity winds to glide harmlessly over the asset, preventing the destructive sail effect.
Oversized industrial assets demand seamless, monolithic protection. Splicing multiple small sheets together creates inherent weak points that wind and water will inevitably exploit. We manufacture this wrap in massive, commercial-scale dimensions to ensure comprehensive, single-piece coverage for the most challenging projects. With a sprawling width range from 12 feet up to an industry-leading 80 feet (3.65 to 24.4 meters), we provide tailored solutions for massive marine vessels, aircraft fuselages, and architectural modules.
Seamless Integrity: Wrapping an entire yacht or modular home in a single continuous sheet eliminates vulnerable heat-taped seams, drastically improving the overall wind resistance and waterproofing.
Thickness Variations: Ranging from a flexible 6 mil for lighter equipment to a heavy-duty 14 mil for extreme industrial applications, allowing you to match the exact gauge to your project's specific risk profile.
Color Coding Systems: Available in stark white to reflect heat and minimize condensation, clear for visual inspection of the asset, and blue for winterization, with custom color matching available.
Custom Cut Lengths: Beyond standard roll sizes, we can provide specific cut lengths to minimize on-site waste and streamline the packaging process for repetitive manufacturing runs.
A protective cover is only effective if it stays securely in place during transit and storms. Loose tarps catch the wind, creating a violent flapping effect that can damage equipment or cause the cover to rip away entirely. Engineered with a highly precise 1.8:1 shrink ratio, this material reacts predictably and uniformly to heat, contracting tightly around the most complex and irregular geometries.
Aerodynamic Contouring: The high shrink ratio ensures the plastic molds perfectly to boat hulls, protruding machinery parts, and sharp contours, eliminating loose pockets that trap wind or collect debris.
Streamlined Application: We supply specialized heat guns and comprehensive installation accessories, making the heating process smooth, fast, and uniform for your packaging team.
Remote Technical Guidance: To guarantee optimal results, our engineering team provides remote video support to troubleshoot uneven shrinking or complex wrapping scenarios, ensuring a perfect seal every time.
Wrinkle-Free Finish: The combination of the PE shell and non-woven backing ensures an aesthetically pleasing, professional, and wrinkle-free finish that reflects well on your brand upon delivery.
Procuring protective materials at a commercial scale requires absolute confidence in product consistency, safety, and longevity. We back our entire manufacturing process with rigorous, documented quality assurance protocols that leave nothing to chance. Every batch undergoes strict mechanical testing in our facility to verify tensile strength, puncture resistance, and thermal reactivity before it is cleared for dispatch.
Certified Testing Data: We supply comprehensive impact and tensile strength test reports aligned with ISO 1184 standards, satisfying the strict compliance requirements of your engineering and quality control departments.
Long-Term Defect Warranty: To completely mitigate your procurement risks, we offer an extended 5-year warranty against any inherent material defects, ensuring your financial investment is fully protected.
Consistent Batch Quality: Advanced extrusion and lamination monitoring systems guarantee that a 14-mil roll ordered today performs exactly identically to one ordered a year from now, ensuring operational stability.
Traceability: Each roll is individually coded, allowing full traceability back to the specific raw material batch and production shift, ensuring complete accountability.
For highly specialized sectors such as aerospace, military logistics, and offshore energy, standard physical protection is often insufficient. We offer advanced chemical integrations and material upgrades to meet the most stringent regulatory and operational demands in the world. By customizing the polymer blend during the extrusion process, we elevate the wrap from a simple physical barrier to an active preservation system.
Fire Retardant (FR) Options: Essential for indoor storage, shipyards, and construction sites, our FR-treated wraps self-extinguish to comply with strict safety regulations and insurance mandates.
Volatile Corrosion Inhibitor (VCI): For bare metal components and sensitive engines, we can integrate VCI technology that emits protective vapors, actively halting rust and oxidation during transoceanic shipping.
Enhanced Plush Lining: For highly sensitive aerospace components or luxury yacht finishes, the internal non-woven layer can be upgraded to an ultra-soft fleece, guaranteeing absolute surface perfection.
Biodegradable Additives: Aligning with modern sustainability goals, we offer eco-conscious formulations that maintain high strength during use but break down responsibly after disposal.
As a dedicated manufacturer and trusted supplier of advanced industrial packaging solutions, we understand that logistical delays and material failures are simply not an option for your operations. Our entire infrastructure is built to support high-volume, time-sensitive demands with uncompromising quality and precision. We partner with our clients to optimize their packaging workflows and reduce overall transit damage costs.
Rapid Production Turnaround: Standard dimensions are processed, packed, and ready for dispatch within a reliable 4 to 6 business days, keeping your logistics schedule firmly on track.
Bespoke Engineering: Custom seamless wraps engineered for uniquely oversized projects are manufactured and shipped within a swift 10 to 12-day window.
Global Logistics Expertise: We manage complex shipping requirements seamlessly, offering expedited freight options for urgent asset protection scenarios anywhere in the world.
Dedicated Account Management: From initial specification consulting to post-delivery installation support, you receive continuous, expert guidance tailored specifically to your industry's unique requirements.
Review our most frequently asked questions regarding technical specifications, application methods, and performance capabilities to ensure this solution aligns perfectly with your project requirements.
The 100 gsm non-woven polyester layer serves two critical functions. First, it acts as a soft, anti-scratch barrier that protects delicate painted surfaces and glass from friction during transport. Second, it significantly reinforces the structural integrity of the PE film, increasing overall tensile strength and tear resistance by up to 80% compared to standard films.
A 1.8:1 shrink ratio means the material can contract by nearly half its original size when exposed to proper heat. This high reactivity allows the wrap to conform tightly to highly irregular shapes—such as protruding engine components or boat hulls—creating a drum-tight, aerodynamic seal that prevents wind flapping and moisture pooling.
Yes. Our formulation includes specialized cold-weather additives that prevent the high-density polyethylene from becoming brittle or cracking in freezing temperatures. Combined with its ability to hold up to 50 lbs of direct pressure, it is highly effective at shedding heavy snow loads and resisting ice accumulation during winter storage.
We manufacture this wrap in seamless widths up to 80 feet (24.4 meters). Using a single, continuous sheet for massive assets like modular homes or large yachts eliminates the need for heat-taped seams. Seams are potential weak points for wind and moisture penetration, so a seamless wrap guarantees superior, uninterrupted protection.
Absolutely. As a professional manufacturer, we provide detailed test reports for tensile strength, impact resistance, and puncture tolerance based on ISO 1184 standards. This documentation ensures our products meet the strict compliance and safety requirements of your engineering, logistics, and quality assurance departments.
