Modular and prefabricated homes represent massive financial investments and intricate architectural craftsmanship, demanding a protection strategy that goes far beyond conventional tarps. When a fully finished housing module leaves the factory floor, it faces a harsh physical reality: highway wind shear, flying road debris, and unpredictable weather patterns. Our reinforced heat shrink wrap acts as a structural skin, engineered specifically to safeguard these oversized, high-value assets throughout their journey. By utilizing this specialized containment solution, project managers achieve remarkable cost-effectiveness, drastically reducing the labor and financial burden associated with moisture damage rework, on-site cleaning, and delayed assembly schedules.
Modular home sections, including full-scale walls, roofs, and completed room pods, often travel hundreds of miles on flatbed trailers. During transit, they are subjected to extreme aerodynamic drag and abrasive road debris. We provide ultra-wide seamless dimensions—spanning up to 60 feet in width—allowing entire modules to be encapsulated in a single, continuous sheet. This mega-coverage entirely eliminates vulnerable overlapping seams where water typically infiltrates at highway speeds. The reinforced layer absorbs physical impacts, preserving fragile drywall, pre-installed flooring, and custom window glazing so they arrive at the destination in pristine condition.

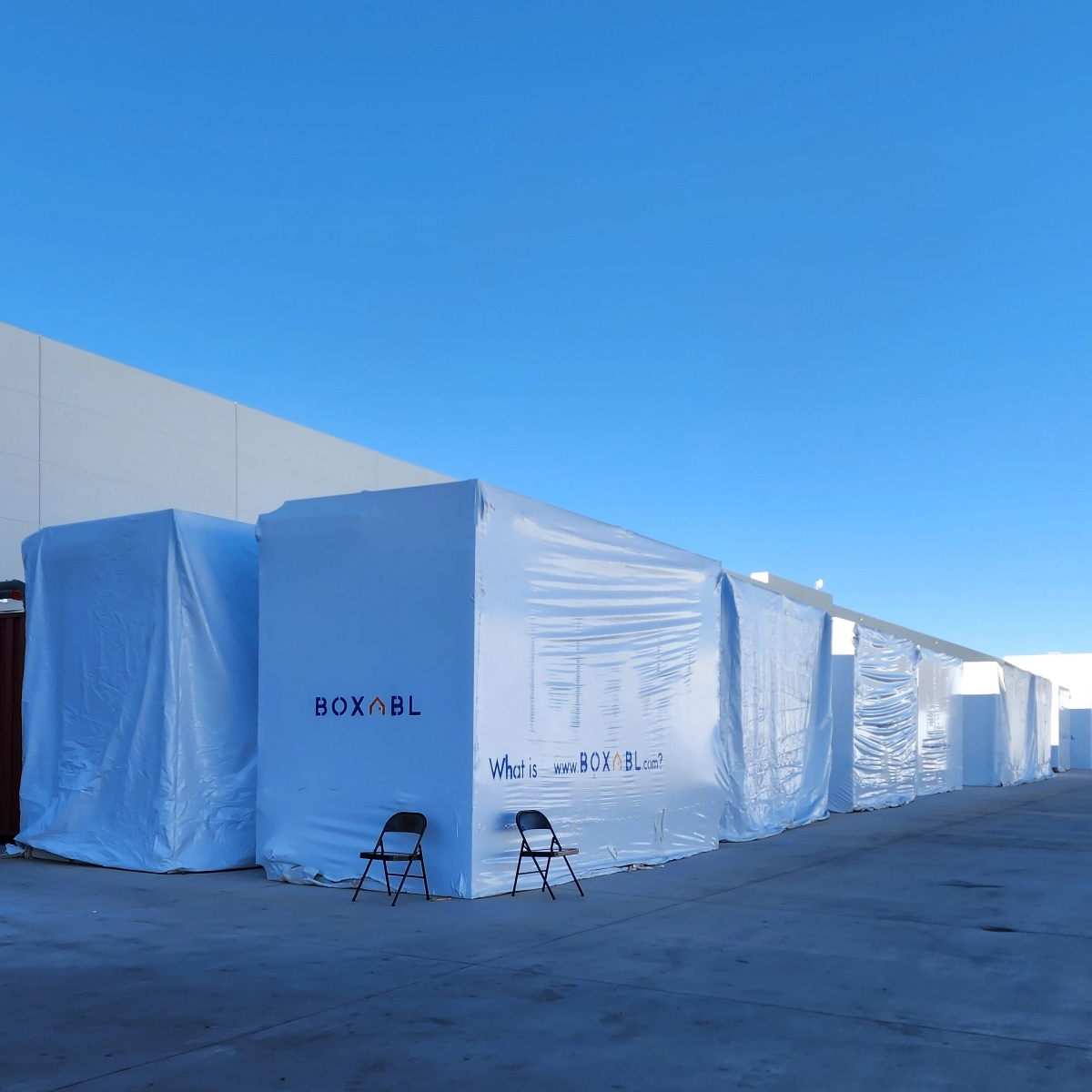

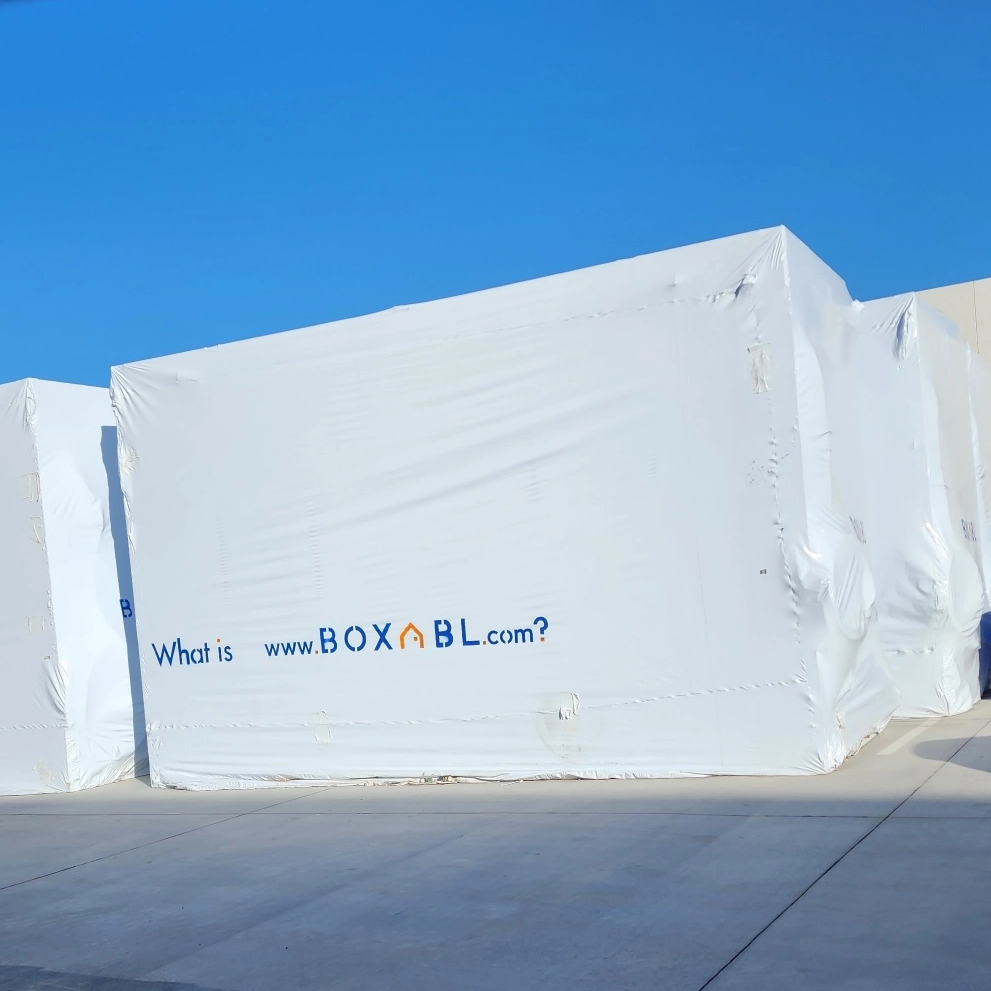

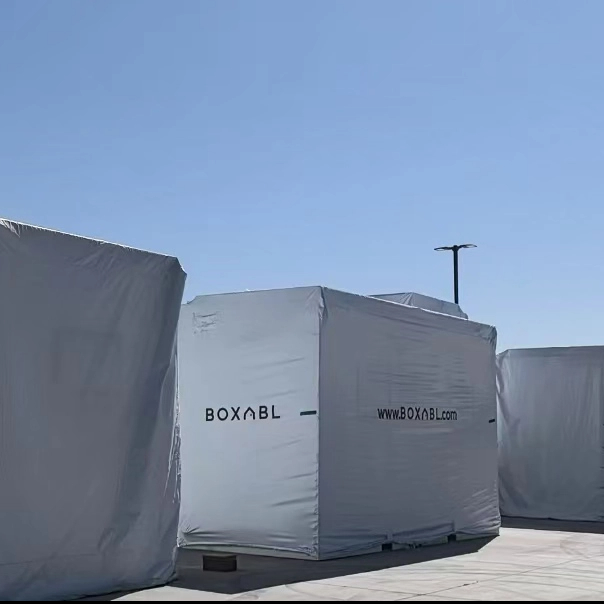

Logistical delays frequently dictate that prefabricated units sit on exposed staging grounds for weeks or even months before the concrete foundation is ready. Our wrap forms an impenetrable barrier against torrential rain, heavy snow loads, and intense solar radiation. By blocking 99% of UV rays, it prevents the chalking and fading of exterior siding, while the waterproof exterior ensures that interior insulation remains completely dry. You will never have to deal with the musty odor of damp timber or the structural compromise of waterlogged materials.
The transition from storage to active assembly must be swift. Our shrink wrap is formulated for clean removal; a simple incision allows the tensioned film to peel away effortlessly without leaving any sticky adhesive residue on pre-installed fixtures like exterior lighting, cabinetry, or trim. This clean-release profile accelerates the preparation phase, allowing crane operators and rigging teams to lift modules into place without pausing to scrape off packaging remnants or repair surface abrasions.

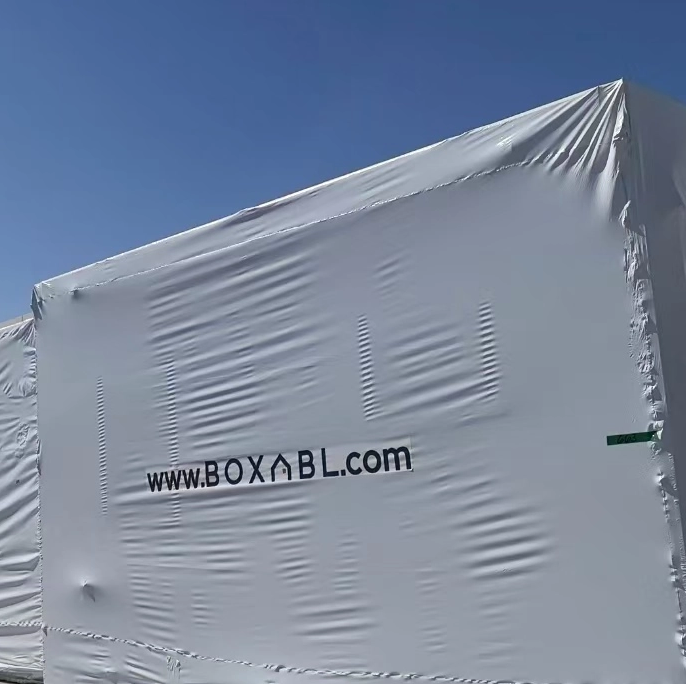

The physical composition of our wrap is formulated to handle the unique geometric stresses of prefabricated sections, from sharp roof trusses to protruding window frames. Touching the unheated film reveals a dense, substantial texture, while the post-shrink result feels and sounds as tight and resonant as a drumhead, signaling a perfectly secured load that will not flap or degrade in the wind.
Manufactured exclusively from 100% virgin resin, the film guarantees uniform shrinkage and exceptional longevity during prolonged outdoor exposure. It features a dual-layer polyethylene architecture—a high-density outer shell for weather deflection and a low-density inner layer for flexibility. Laminated between these layers is a 50 gsm fiberglass mesh grid. This specialized reinforcement acts as an emergency stop for punctures, preventing small tears from expanding across the surface even when stretched tightly over sharp architectural edges, easily withstanding sustained wind speeds up to 50 mph.
Construction sites and industrial staging areas operate under strict fire safety regulations. To mitigate the risk of accidental ignition from on-site welding, grinding sparks, or electrical faults, we offer a specialized flame-retardant formulation. This safety-compliant option self-extinguishes upon the removal of a direct flame source, providing critical peace of mind and lowering insurance liabilities during both transit and long-term storage.
We do not believe in one-size-fits-all covers. By engineering wraps based directly on the CAD drawings of your specific modular sections, we ensure that every architectural nuance—from deep overhanging eaves to recessed balconies—is hugged tightly. This eliminates loose folds that can trap moisture or suffer wind fatigue. Furthermore, we strategically integrate micro-ventilation ports. These precise perforations are too small to admit rain but large enough to facilitate active air circulation, preventing internal condensation buildup that could otherwise warp interior woodwork.
Precision in manufacturing dictates the reliability of the final protective barrier. The parameters outlined below are strict manufacturing tolerances designed to ensure that every roll of shrink wrap performs flawlessly under the immense strain of modular transport. We maintain rigorous quality control over thickness consistency, mesh lamination, and shrink ratios so that your procurement teams receive a highly predictable, standardized product every single time.
Parameter | Details |
Size | 100% customized (per modular section: e.g., 20'x8' walls, 30'x10' roofs) |
Thickness | 10–18 mil (250–450 microns) |
Reinforcement | Fiberglass mesh (50 gsm) laminated between PE layers |
UV Protection | 99% UV block (prevents siding/flooring fading) |
Moisture Resistance | 100% waterproof; optional micro-vent holes for long-term storage |
Shrink Ratio | 2:1 (crosswise); 1.5:1 (lengthwise) |
These specifications translate directly to field performance. The 10–18 mil thickness provides a robust physical barrier against abrasion, while the precise shrink ratio ensures the material conforms smoothly to complex shapes without thinning out excessively at the corners.
Delivering the physical film is only a fraction of the containment solution. We provide a comprehensive support ecosystem designed to empower your staging and assembly teams. From the moment a module is drafted to the day it is unwrapped on the foundation, our service infrastructure ensures a streamlined, error-free packaging process that integrates smoothly into your existing supply chain.
Our engineering team collaborates directly with your architectural designers to import structural CAD files. This digital integration allows us to calculate the exact wrap dimensions required for each modular section. Before any material is extruded, we provide detailed 3D renderings of the wrapped modules, allowing your team to visualize the coverage, approve the seam placements, and confirm that lifting points remain accessible.
To guarantee optimal performance, we have developed a standardized installation protocol covering everything from edge padding application and bottom-band securing to the exact heating sequence. We supply a complete ecosystem of professional-grade accessories, including high-output propane heat guns, the heavy-duty grip of thermal safety gloves, specialized film cutting knives, and tension strapping. This one-stop procurement eliminates the friction of sourcing compatible tools from multiple vendors. For major developments exceeding ten sections, we can deploy certified installation crews to handle the application directly on your factory floor.
Even the toughest materials can face unexpected hazards from low-hanging branches or forklift miscalculations. To address this, we supply specialized heat-shrink repair tape that bonds instantly with the main cover. A quick application of heat fuses the patch, instantly restoring 100% of the waterproof and structural integrity without requiring a full re-wrap. Backed by a comprehensive one-year warranty against UV degradation and material failure, our on-call technical support remains available throughout the transport and assembly phases to assist with everything from tension adjustments to safe removal techniques.
