VCI shrink film is a polyethylene packaging film infused with Vapor Corrosion Inhibitor chemistry, designed for wrapping metal components and equipment during storage and transit. When the film is applied and shrunk around metal surfaces, VCI molecules disperse within the enclosed space, forming a protective layer on ferrous and certain non-ferrous metal surfaces. This reduces the rate of corrosion formation in humid or variable-temperature environments.
The film is available in UV-stabilized, flame-retardant, and biodegradable formulations to match different project requirements. Widths range from 12 feet to 65 feet, with thickness options from 6 mil to 14 mil, covering small equipment wraps up to full scaffolding enclosures. The product serves metal fabrication, marine storage, construction, and modular housing sectors where corrosion protection during transport or outdoor storage is a procurement requirement.
Parameter | Details |
Core Function | Vapor Corrosion Inhibitor (VCI) shrink film |
Width Range | 12 ft - 65 ft (3.65 m - 20 m) |
Thickness Range | 6 mil - 14 mil (150 - 350 micron) |
Standard Colors | White, clear, blue |
Custom Colors | Available upon request |
Available Formulations | UV-protective, flame-retardant, biodegradable |
Custom Sizing | Available for width, length, and thickness |
Size Designation |
12' × 7 Mil Shrink Wrap |
14' × 7 Mil Shrink Wrap |
16' × 10 Mil Shrink Wrap |
20' × 7 Mil Shrink Wrap |
20' × 10 Mil Shrink Wrap |
24' × 6 Mil Shrink Wrap |
24' × 7 Mil Shrink Wrap |
26' × 7 Mil Shrink Wrap |
26' × 9 Mil Shrink Wrap |
28' × 7 Mil Shrink Wrap |
32' × 7 Mil Shrink Wrap |
32' × 12 Mil Shrink Wrap |
36' × 7 Mil Shrink Wrap |
40' × 7 Mil Shrink Wrap |
40' × 10 Mil Shrink Wrap |
50' × 9 Mil Shrink Wrap |
60' × 7 Mil Shrink Wrap |
60' × 10 Mil Shrink Wrap |
65' × 7 Mil Shrink Wrap |
80' × 7 Mil Shrink Wrap |
Fabricated metal parts, machinery, and automotive components are susceptible to rust formation when exposed to humid air during warehouse storage or ocean freight. VCI shrink film creates a sealed enclosure around the items, and the VCI chemistry inside the package maintains a corrosion-inhibiting atmosphere. This reduces the need for rust-preventive oils or desiccants, which simplifies unpacking at the destination.
On construction sites, VCI shrink film is used to wrap scaffolding structures and exposed steel frameworks. The film provides wind and dust containment while the VCI component protects steel pipes and connectors from atmospheric corrosion during multi-month projects. UV-stabilized formulations are typically selected for long-duration outdoor exposure.
Boats and watercraft stored on land for off-season periods benefit from VCI shrink wrap protection for metal hardware, engine components, and trailer frames. The shrunk fit sheds rain and snow, and the VCI layer addresses condensation that forms inside the enclosure during temperature cycles.

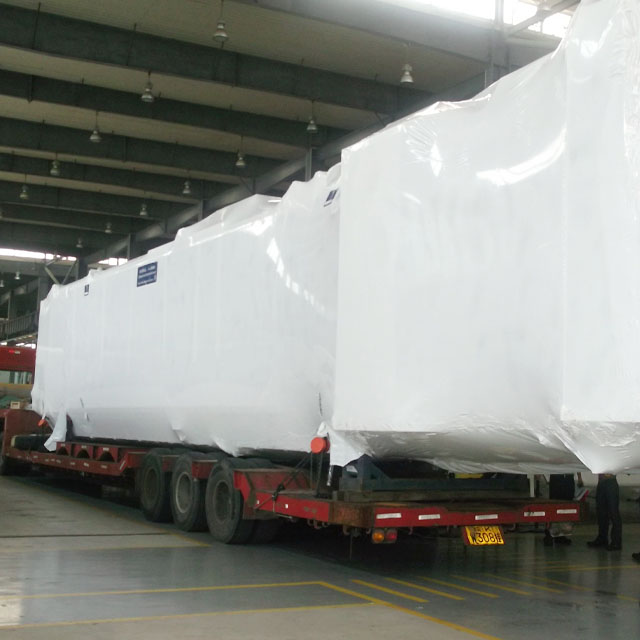

Prefabricated modular units, work vehicles, and heavy equipment shipped over long distances use VCI shrink film as an outer protective layer. The film conforms to irregular shapes when heated, and the VCI additive protects exposed fasteners, brackets, and undercarriage metal from corrosion en route.
For construction sites requiring temporary weather protection over work areas, VCI shrink film serves as a containment membrane. It also protects steel support structures and tooling stored underneath from humidity-related corrosion.
The base film is manufactured from polyethylene resin blended with VCI masterbatch at a controlled concentration. The VCI compound releases vapor molecules that are heavier than air, settling onto metal surfaces within the enclosed space to form a thin, invisible protective layer. This layer does not leave residue on most metal finishes and does not require cleaning before assembly or painting.
UV-stabilized variants incorporate UV inhibitors into the resin blend to slow film degradation from sunlight exposure. Flame-retardant formulations include additives that modify burn behavior for sites with fire-safety requirements. Biodegradable options use resin blends designed to break down under industrial composting conditions after use.
Custom widths, lengths, and thicknesses are produced to match specific equipment dimensions or packaging line specifications. Custom color matching is available for brand-aligned or safety-coded installations, and private-label branding can be arranged for volume orders.
Small-batch orders are accepted for standard sizes, with minimum quantities varying by formulation and thickness. Production lead times are confirmed at the time of order based on current production scheduling and formulation complexity.
VCI shrink film is formulated primarily for ferrous metals including steel and cast iron. It also provides a degree of protection for certain non-ferrous alloys. Specific metal compatibility can be confirmed for unusual alloy compositions before ordering.
The VCI protective layer is invisible and does not leave oily or greasy residue on most metal surfaces. Parts can typically be assembled, painted, or used directly after unwrapping without additional cleaning.
Protection duration depends on enclosure seal quality, temperature fluctuations, and humidity levels. For properly sealed indoor storage, protection is sustained for multiple months. Outdoor and high-humidity conditions may reduce effective service life.
Yes, VCI shrink film can be produced with both VCI chemistry and flame-retardant additives in the same formulation to meet site-specific safety and corrosion requirements.
Standard shrink wrap heat guns and installation tools are used. No additional equipment is required for the VCI component, as the protection activates automatically once the film is sealed around the metal items.
